Update VMware tools without reboot

Update February 22, 2013: William Lam created a clarification on the Zero-Down Time) VMware Tools Upgrade. Here is a quote from the post:

Is there downtime when upgrading to future versions of VMware Tools?

It depends. If one or more components have been updated since the last VMware Tools upgrade or one of the VMware Tools components requests a system reboot, then a reboot will be required. The following VMware KB http://kb.vmware.com/kb/2015163 has been created to help identify the components that would require a reboot. A reboot would not be require if only the base components of VMware Tools have been upgraded (e.g. no PVSCSI, VMXNET3). You can refer to the above KB for components that require a reboot.

More information can be found here.

Update December 24, 2012:

One of the cool new features of vSphere 5.1 is that you can update the VMware tools without the requirement  to reboot each Virtual Machine (VM). It is called zero-downtime upgrade for VMware Tools.

When upgrading from a early version of vSphere such as 4.x and 5 the VMware tools  update still needs a reboot when updating. Once you are on ESXi 5.1 and updating all the VMs to the latest VMware tools, no reboots will be required for subsequent VMware Tools upgrades!

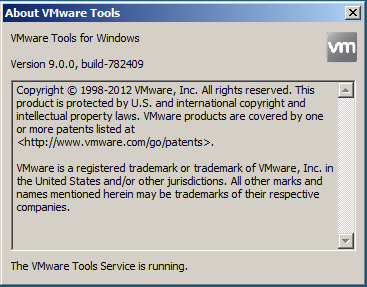

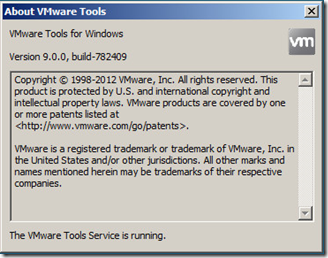

To make this work you need at least VMware tools 9.0.0 build-782409.

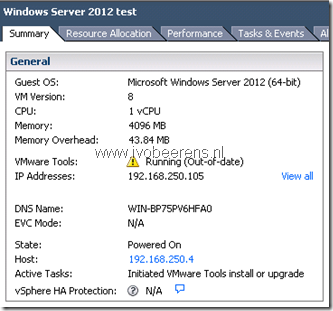

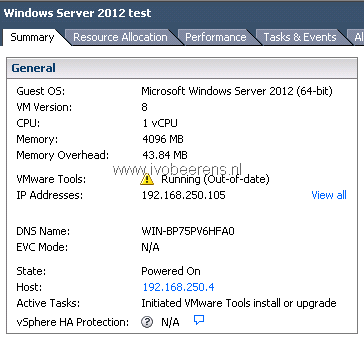

In this example I upgraded first the vCenter server 5.1 to 5.1.0B and installed the latest patches on all the ESXi 5.1 hosts (build 914609) in the cluster. After the upgrade of all VMware ESXi  5.1 hosts, the VMware tools versions of all the VMs reports that the are Out-of-date. This is tested with versions 9.0 Build 782409 of the VMware tools.



In the vSphere client, click VM in the virtual machine menu, then click Guest > Install/Upgrade VMware Tools and click OK.

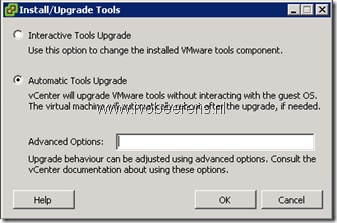

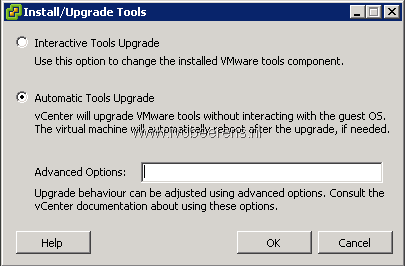

Choose Automatic Tools Upgrade for an unattended upgrade.

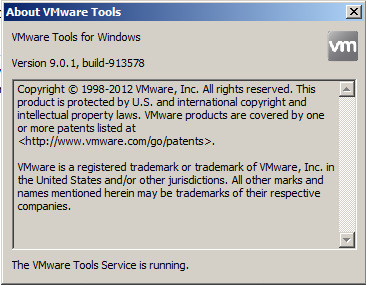

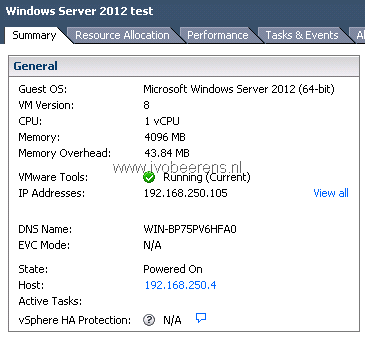

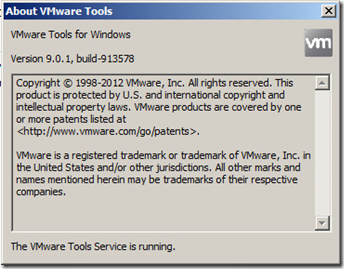

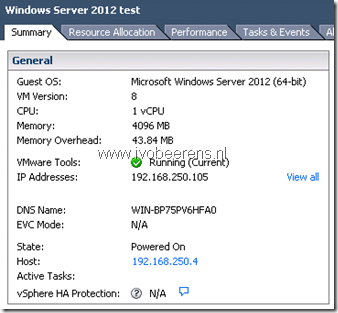

After some time the VMware tools are updated the latest version without a reboot! This example can be a good business case for upgrading  to vSphere 5.1!

9 thoughts on “Update VMware tools without reboot”

  1. This does not seem to be correct (in all cases) … I noticed that in my lab, my VMs did NOT reboot after the upgrade from a Host Upgrade 838463 to 914609 … my VMs are all VM version 8. However at my customer, all VMs are still version 7 and ALL of the machines onto which I deployed the new tools rebooted (independent if Win 2000 / 2003 or 2008). Could the ‘reboot-free’ upgrade process require at least VM version 8 to work??? Couldn’t find any info yet and decided to open a support ticket …

  2. Just did a bunch of updates from VMware tools version 9.0 Build 782409 to 9.0.1 Build 913578. None of the Windows 2008 R2s rebooted but all the 2003s did.

  3. Tried Server 2012, Server 2008 R2 Windows 7, all rebooted
    VMware tools version 9.0 Build 782409 to 9.0.1 Build 913578
