VMware Horizon View Network Port Diagram

VMware has released a Network Port Diagram diagram for VMware Horizon View 5.2.

viewdiagram

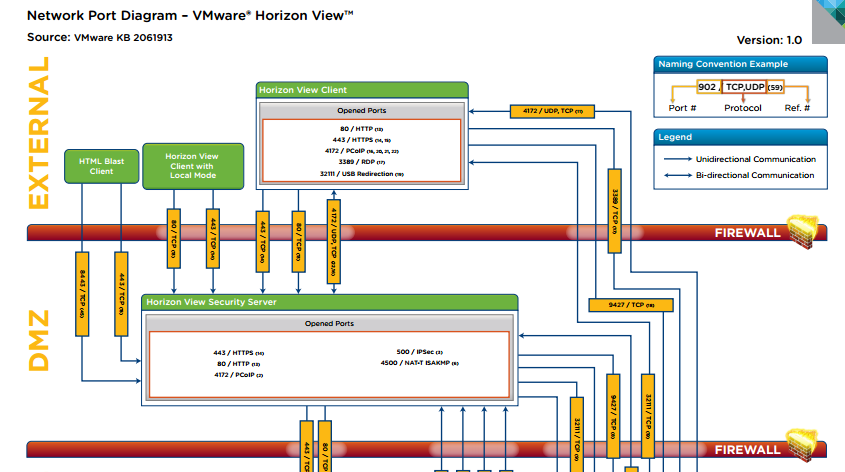

This diagram covers an entire VMware View environment with protocols and port numbers used. In earlier blog posts I already create two small diagrams with protocols and port numbers used by VMware View:

  • VMware Horizon View and HTML access (Blast protocol). Link

The  diagram created by VMware can be handy when implementing and troubleshooting VMware Horizon View.
