Identify LUN IDs in Windows Server 2012 R2

During a Windows Server 2012 R2 Hyper-V implementation I needed to identify all the iSCSI disks (LUNs) presented by an EMC VNX  SAN to the Hyper-v Failover cluster. Each presented iSCSI disk has a unique LUN ID. To View the LUN ID of  a disk, you can use the diskpart command.  Here are the steps to view the LUN ID of a disk:

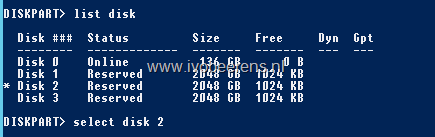

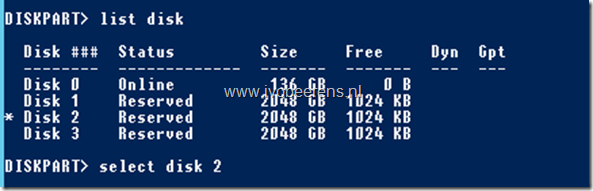

  • View the disks

list disk

  • Select a disk

select disk <number>

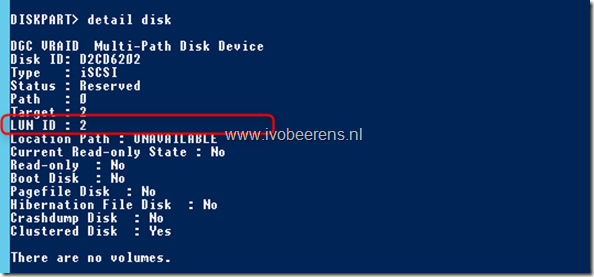

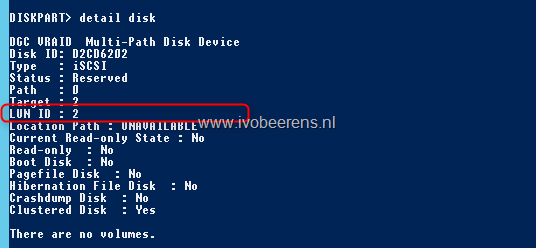

  • View the LUN ID of the disk

detail disk


I didn’t find a PowerShell command to view the LUN IDs. You can create a PowerShell script that uses Diskpart to view all the disks and the corresponding LUN IDs.

Related posts:

  1. Windows Server 2012 PowerShell Cmdlets for Hyper-V help
  2. Install Windows Server 2012 in VMware Workstation
  3. Switch between Windows Server 2012 core and Windows Server 2012 GUI
  4. Nest Windows Server 2012 Hyper-V in VMware ESXi 5
  5. Windows 8 and Windows Server 2012 support on VMware ESXi, Workstation and Fusion

2 thoughts on “Identify LUN IDs in Windows Server 2012 R2”

  1. I’m not at work now so I don’t have access to my script library. I think the WMI Class Win32_DiskDrive class has this attribute as well. So something like
    Get-WmiObject Win32_DiskDrive | Select Name, SCSIBus,SCSILun

    Will work

  2. So i dug into the WMI and wanted to post what it actually was, since that Win32_DiskDrive class is pretty big and has a lot of stuff. Also since the above poster wasn’t exactly right on the select statement, i wanted to help.

    If you wanted to get a little more detailed information to ensure you’re looking at the right storage provider as well, use this select afterwards.

    get-wmiobject Win32_DiskDrive | select name, caption, scsibus, scsilogicalunit | sort-object name | ft -autosize -wrap
