VMware Horizon View Client Drive Redirection

On of the new features of VMware Horizon 6 version 6.1.1 is Client Drive Redirection (CDR). Microsoft RDS and Citrix already have CDR for many years in there product. Now this handy feature is available in Horizon View. CDR is supported on VDI desktops (single-user) and RDS desktops and applications on Windows and as Tech Preview on Mac OS X clients.

Here’s a quick overview how-to enable Client Drive Redirection (CDR):

Requirements

  • Horizon View 6.1.1 environment (Connection Server, composer etc.)
  • View Agent 6.1.1 or later
  • VMware Horizon Client 3.4.0 build-2769709

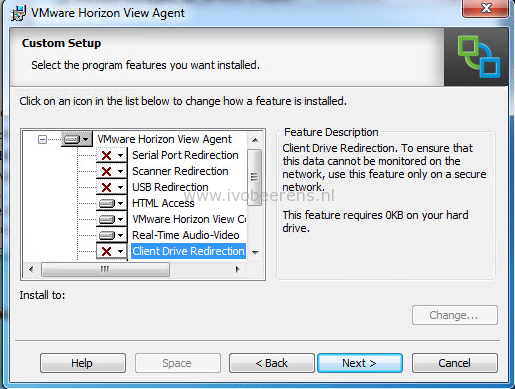

Install the Horizon View Agent. During the installation of the VMware Horizon Agent enable the Client Drive Redirection feature.

agent

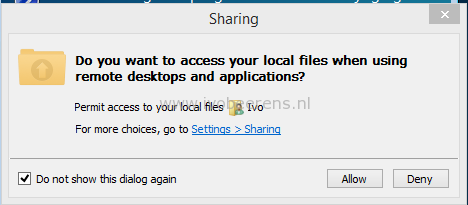

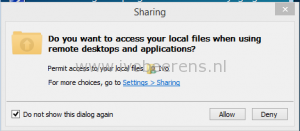

After installing the new Horizon View Agent is deployed on the Horizon View environment,  connect with  new 3.4.0 Horizon Client. When connecting for the first time to the there’s  a pop-up asking to access your local files. Make sure to allow this and select “Do not show this dialog again”.

View Deskstop

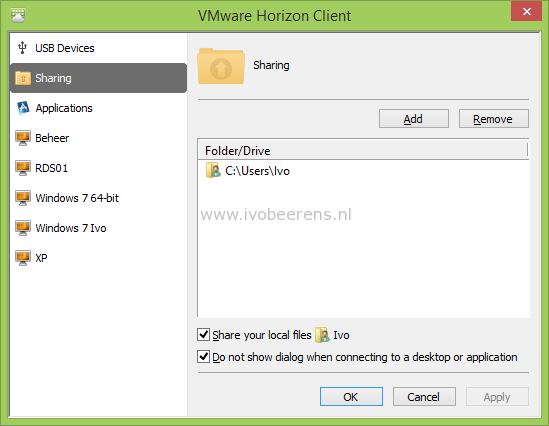

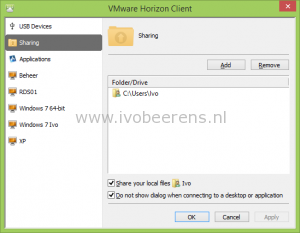

In the Horizon View Client there is a option called “Share Folders”. In the sharing box add local drives and folders to share in the VDI desktop session.

0_sharing Sharing

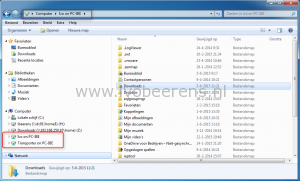

In the Windows Explorer the drives and folders that are mapped are visible.

files



Note: With Client Drive Redirection (CDR), the folders and files that are sent across the network are NOT encrypted!

Related posts:

  1. VMware Horizon View and HTML access (Blast protocol)
  2. Tips for implementing a VMware Horizon View Security Server
  3. The end of Tera1 zero client support in VMware Horizon View 6
  4. VMware Horizon View Network Port Diagram
  5. Troubleshoot replication problems between VMware Horizon View Connection servers

4 thoughts on “VMware Horizon View Client Drive Redirection”

  1. Hi,

    Thx for the post. I’ve all the required versions installed (composer, connection broker , agent and client) but I can see the shared folders which I share in the View client (after authenticating).
    Any idea what’s missing ?

  2. Hi,

    We also have the same issue as ronny. All the servers are on version 6.1.1
    Agent and client are updated, but we don’t get to see the option “shared folders” in the menu of the View client.

    Do you have an idea where to troubleshoot this further?

  3. Forgot to mention, should this new feature work, if you connect to a floating or persistent vdi through PCOIP ?
