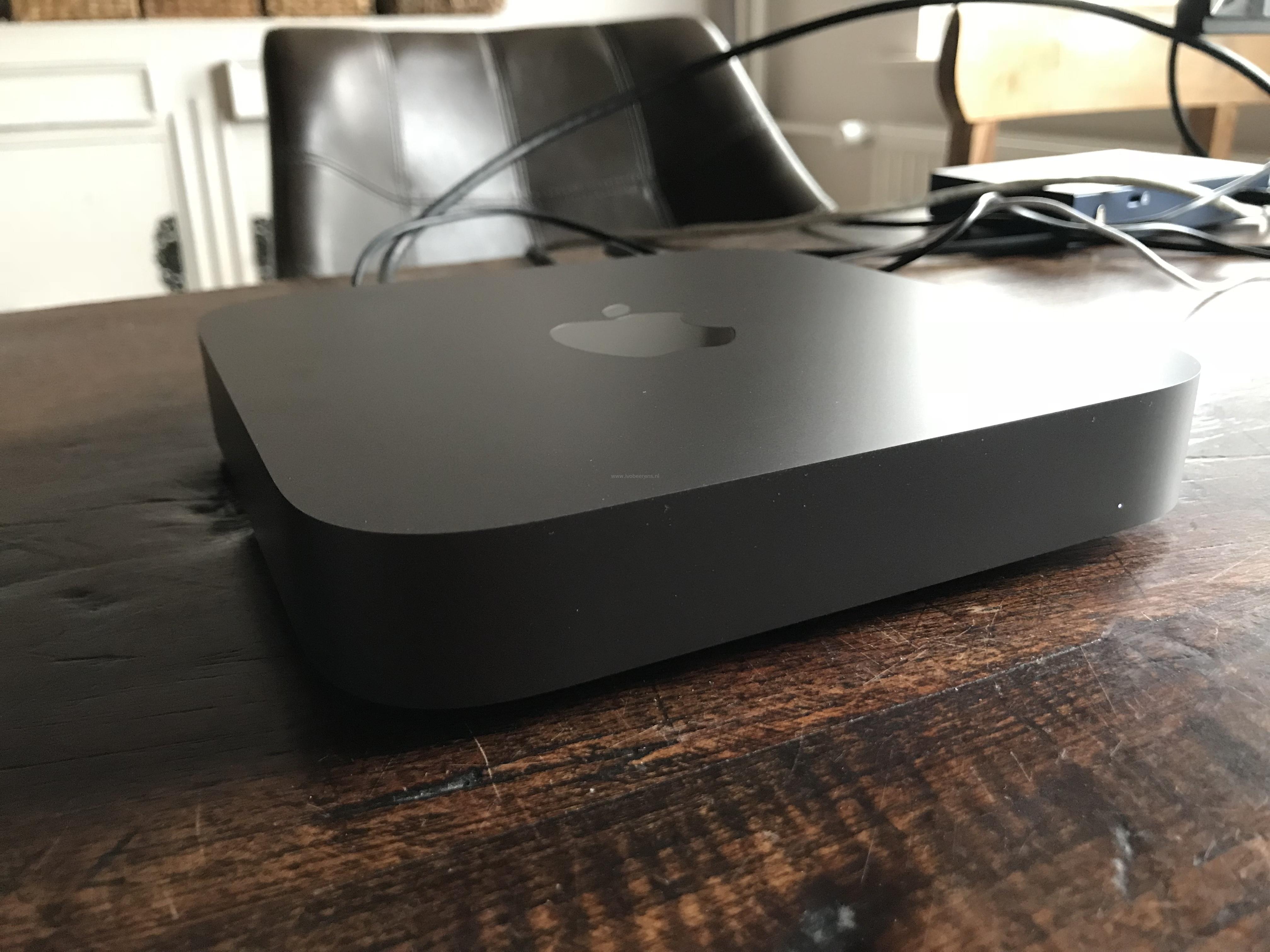

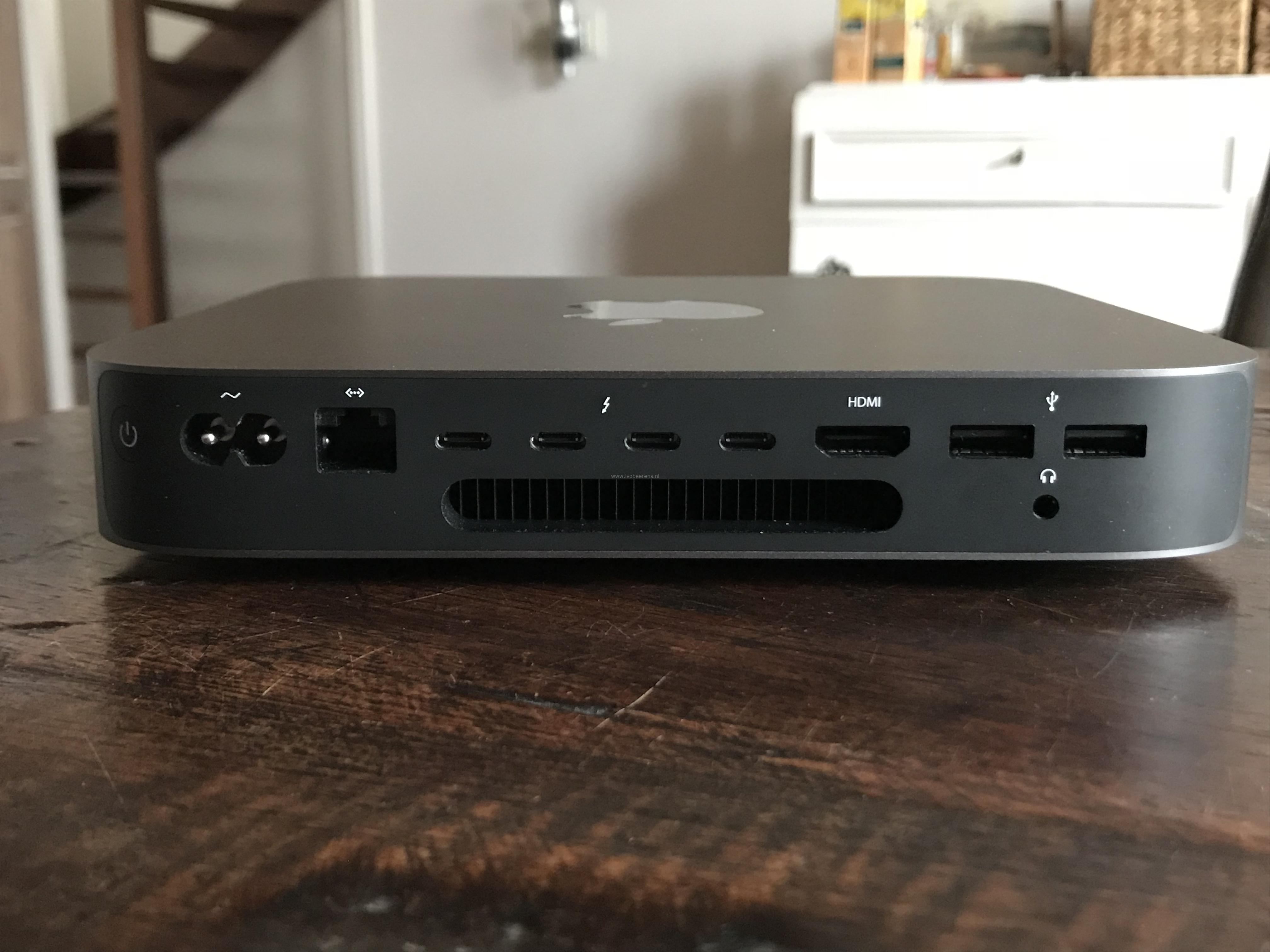

Begin November Apple released there new Apple Mini 2018 models. The last Mac Mini was from 2014. My first question: Is it possible to use the new Mac Mini 2018 as VMware ESXi host? So I’ve borrowed a Mac Mini 2018 model with the following specifications:
- Mac Mini 2018,
- CPU: Intel Core i3 3.6 GHz 4-core 6MB shared L3 cache
- Memory: 8 GB
- Disk: 128 GB SSD storage
- 1 Gb Ethernet adapter
The new Apple Mini 2018 comes in two basic configurations. The basic configurations can be changed (CPU, memory, disk and Ethernet adapter) during the ordering process.
Model comparison:
| Models | Models | |
| Processor | Intel Core i3 3.6 GHz 4-core 6MB shared L3 cache
configurable to: Intel Core i7 3.2 GHz 6-core Turbo Boos 4.6 GHz 12MB shared L3 cache. |
Intel Core i5 3.0 GHz 6 core Turbo Boost up to 4.1GHz 9MB shared L3 cache
configurable to: Intel Core i7 3.2 GHz 6-core Turbo Boos 4.6 GHz 12MB shared L3 cache. |
| Memory | Two user-accessible slots for 8,16,32 or 64 GB of 2666MHz DDR4 SO-DIMM (*1) | Two user-accessible slots for 8,16,32 or 64 GB of 2666MHz DDR4 SO-DIMM (*1) |
| Storage | 128,256, 512, 1 TB or 2 TB GB PCIe- based SSD | 512, 1 TB or 2 TB GB PCIe- based SSD |
| Graphics | Intel UHD Graphics 630 | Intel UHD Graphics 630 |
| Networking | 1 x Gigabit Ethernet port
802.11ac Wi-FI wireless networking IEEE 802.11a/b/g/n compatible Optional:
|
1 x Gigabit Ethernet port
802.11ac Wi-FI wireless networking IEEE 802.11a/b/g/n compatible Optional:
|
| Connections and Expansion | Four Thunderbolt 3 (USB-C) port with support for:
Two USB 3 ports HDMI 2.0 port 3.5 mm headphone jack |
Four Thunderbolt 3 (USB-C) port with support for:
Two USB 3 ports HDMI 2.0 port 3.5 mm headphone jack |
| Dimensions | 19,7 x 19,7 x 3,6 cm | 19,7 x 19,7 x 3,6 cm |
| Weight | 1.3 kg | 1.3 kg |
| Warranty | Your Mac mini comes with 90 days of complimentary technical support and a one-year limited warranty. | Your Mac mini comes with 90 days of complimentary technical support and a one-year limited warranty |
| Remote Management | No | No |
| Listed in the VMware Compatibility Guide | No. So there no official support from VMware. | No. So there no official support from VMware. |
| Starting price | € 899 (*2) | € 1.249 (*3) |
(*1) There are two memory slots available.
(*2) The 2018 Mac mini starts at € 899,00 with an i3 processor, 8 GB RAM and 128 GB SSD storage and 1 Gb Ethernet adapter.
(*3) The 2018 Mac mini starts at € 1249,00 with an i5 processor, 8 GB RAM and 256 GB storage and 1 Gb Ethernet adapter.
Installation of VMware ESXi on the Mac Mini 2018 model
Is it possible to install and run VMware ESXi on the Mac Mini 2018? Yes with some caveats such as hardware that is not recognized. The Mac Mini 2018 model is installed with VMware ESXi 6.7 Build 10302608 (ESXi 6.7 U1). Creating a VMware ESXi USB stick is explained in the following blog post, link.
Configuration steps:
- The PCIe-based SSD is not recognized by VMware ESXi. Create an USB key with ESXi installed.

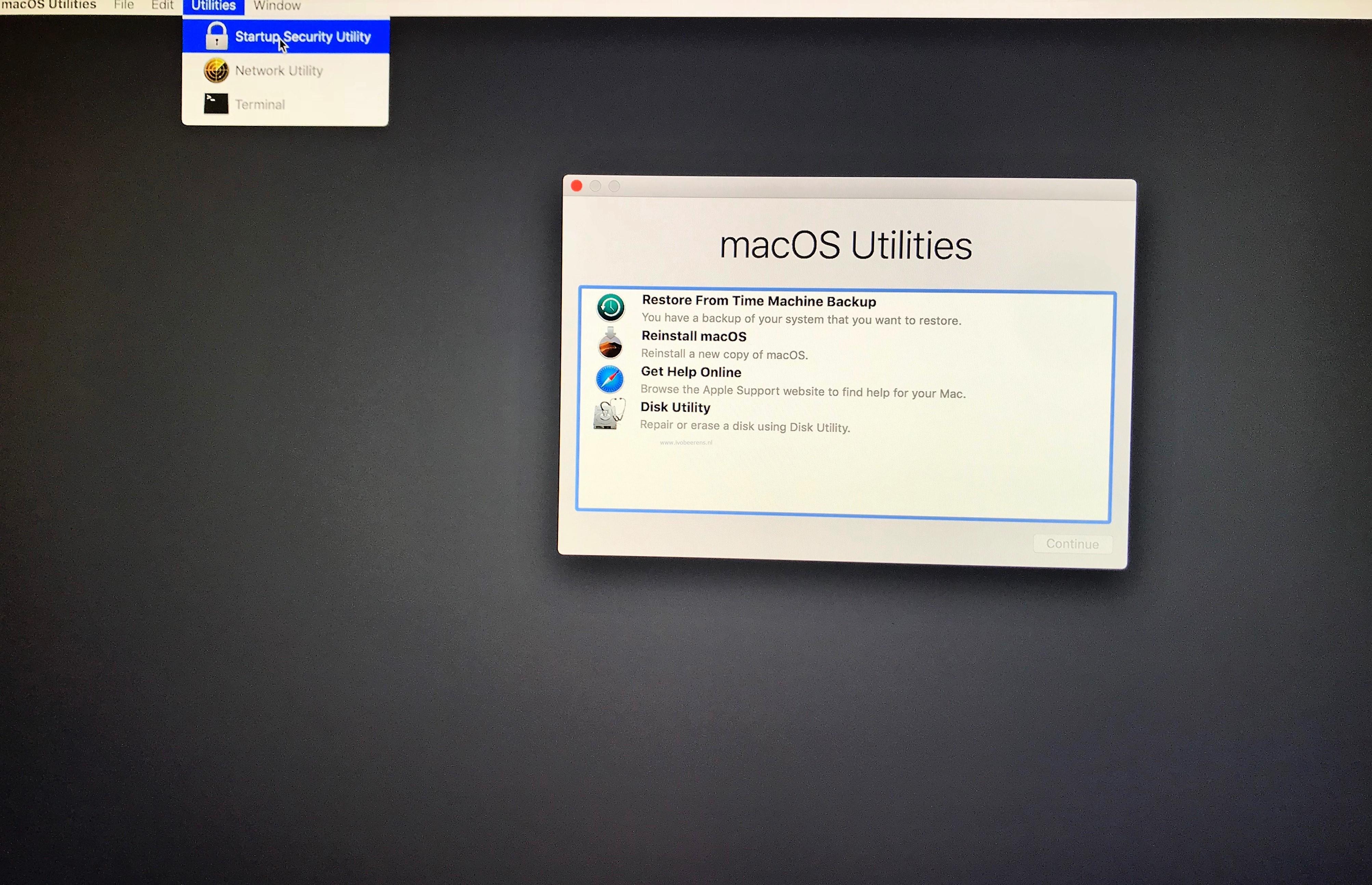

- The Mac Mini 2018 includes a T2 Security Chip, the T2 chip prevents booting booting non legitimate trusted operating systems using secure boot. For ESXi secure boot needs to be disabled. To disable secure boot, boot in the “macOS Utilities”:
- Turn on your Mac and press and hold the Command (⌘)-R key immediately after you see the Apple logo
- Select the “Startup Security Utility” in the Utilities menu.

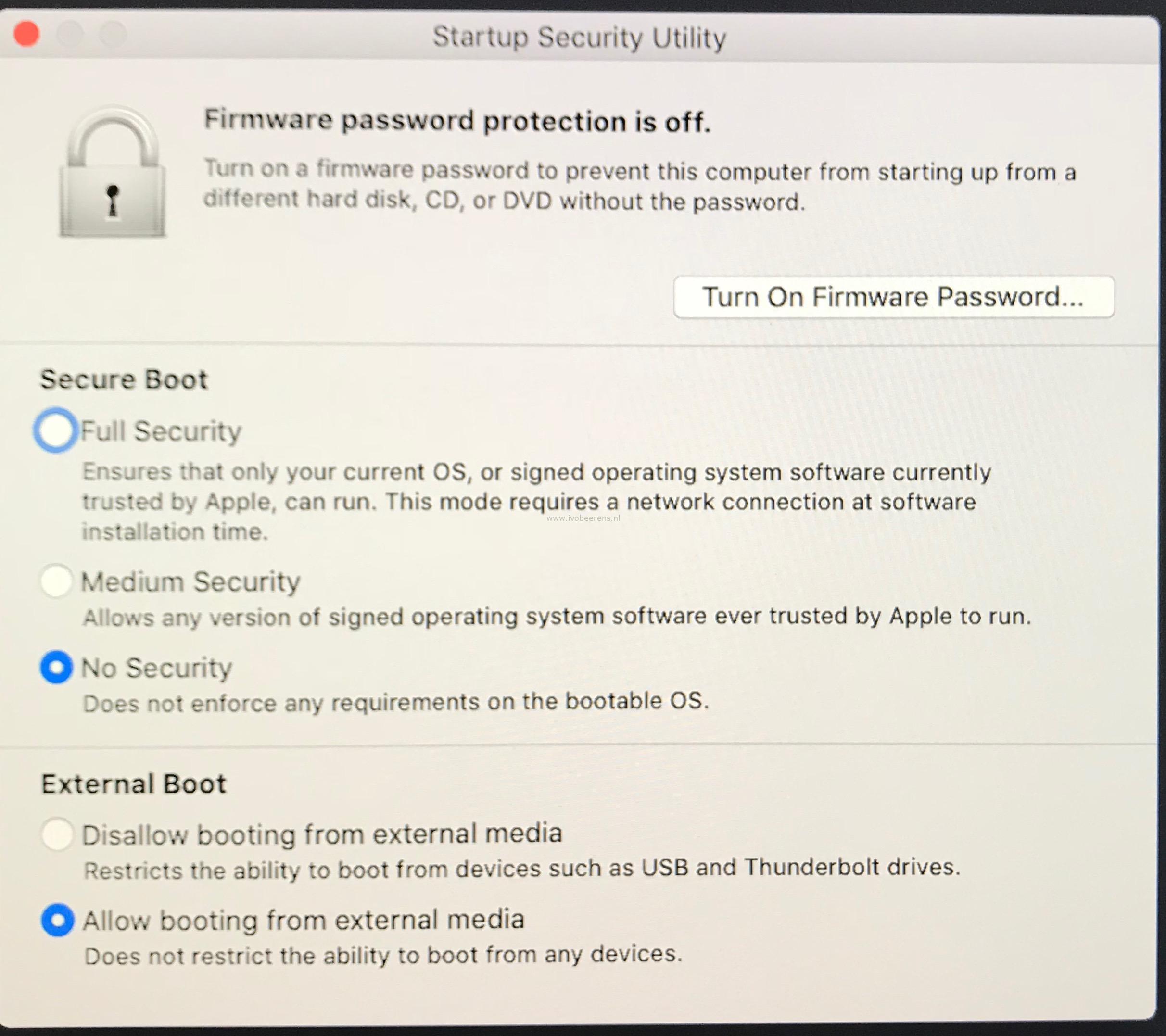

- Choose “No Security” and select “Allow booting from external media”.
- In the “Startup Security Utility” menu select the Apple icon and select “Shut down”
- Insert the USB drive in one of the USB ports on the back of the Mac Mini 2018

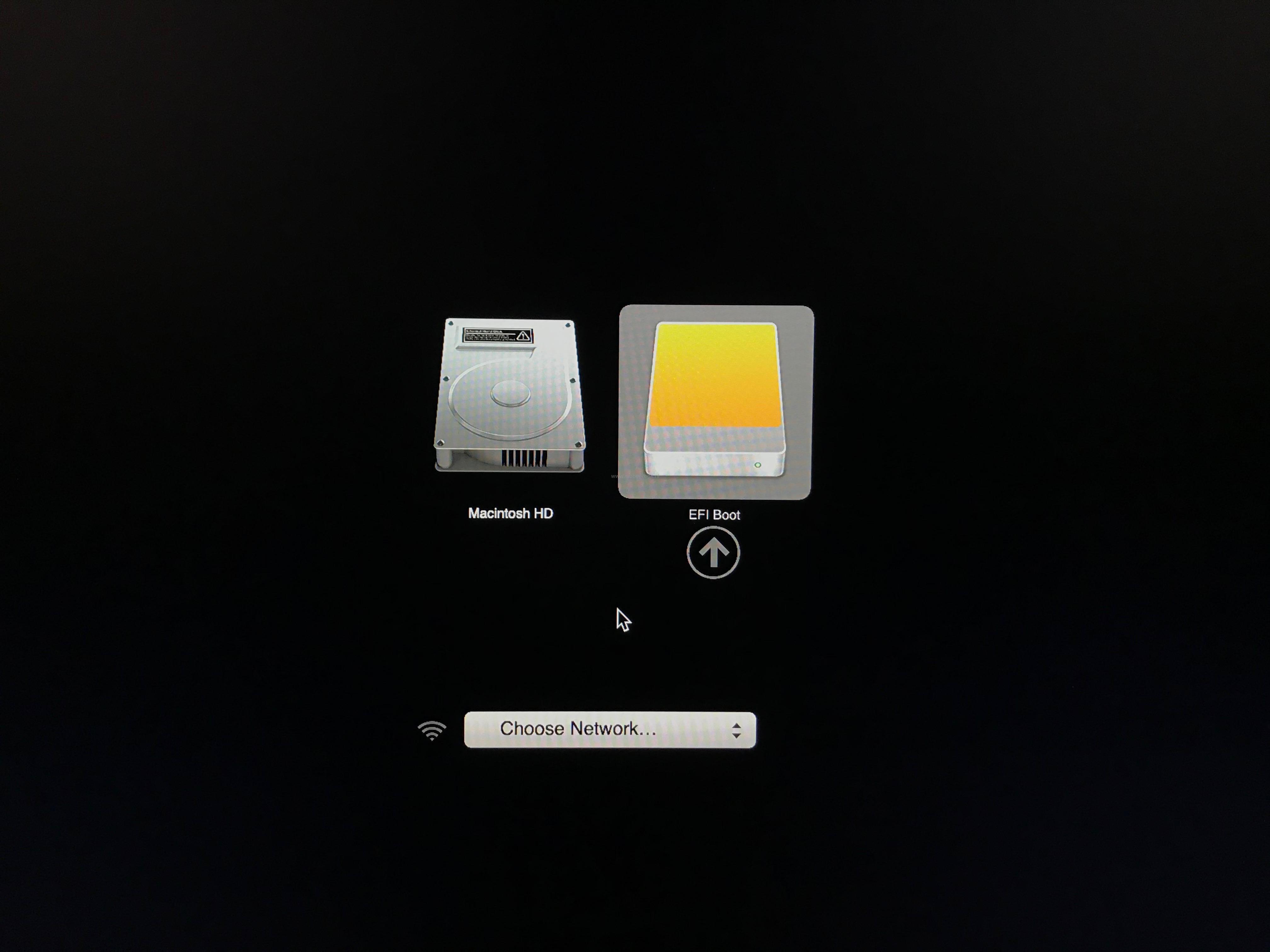

- Press the power button on the back of the Mac Mini and keep the Option (⌥) key pressed for the Startup Manager. Select “EFI Boot” to boot the USB key.
- The USB key will start with the ESXi installation.
Overview

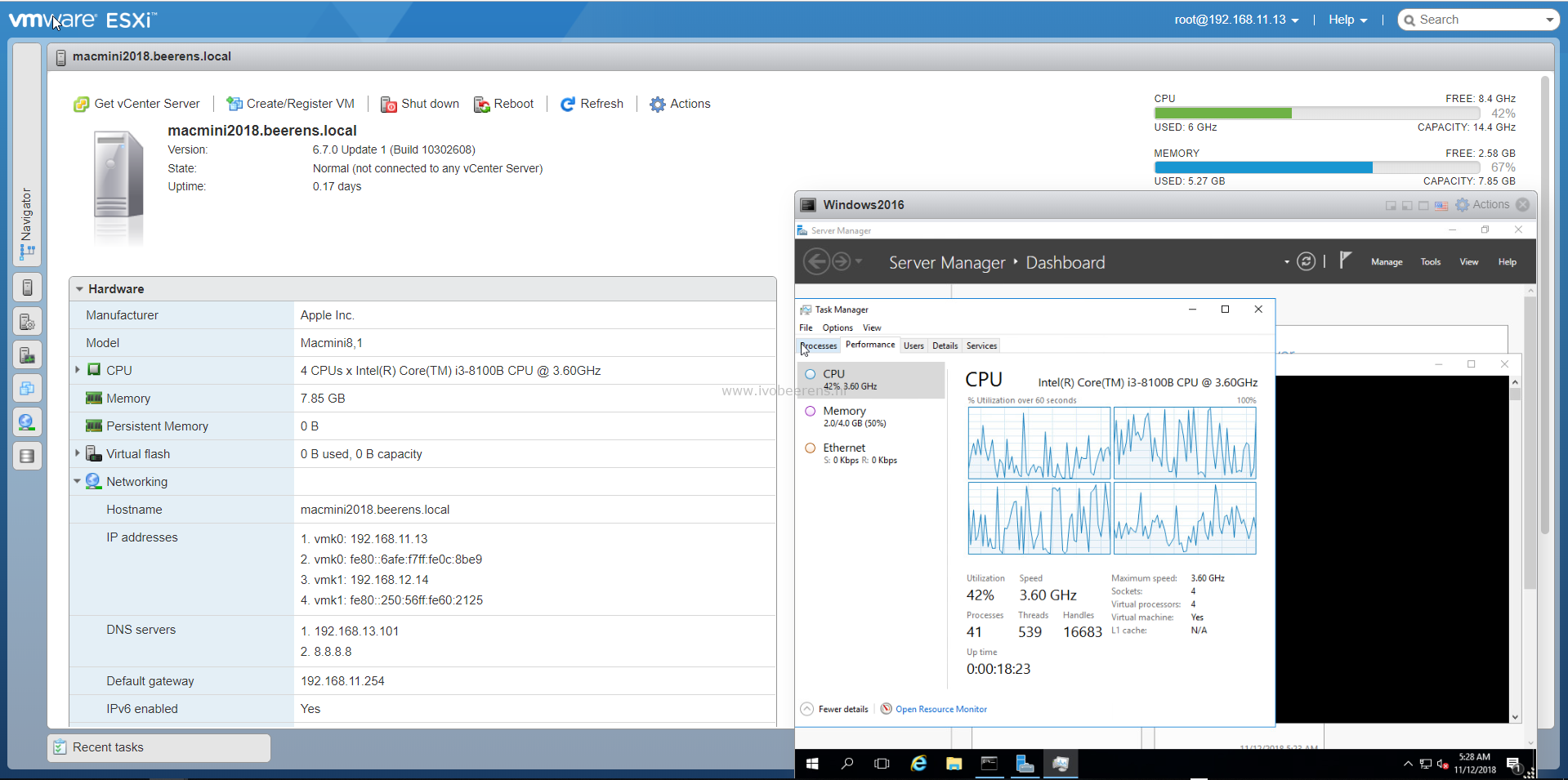

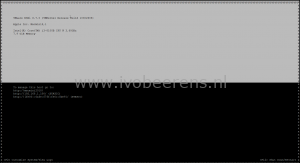

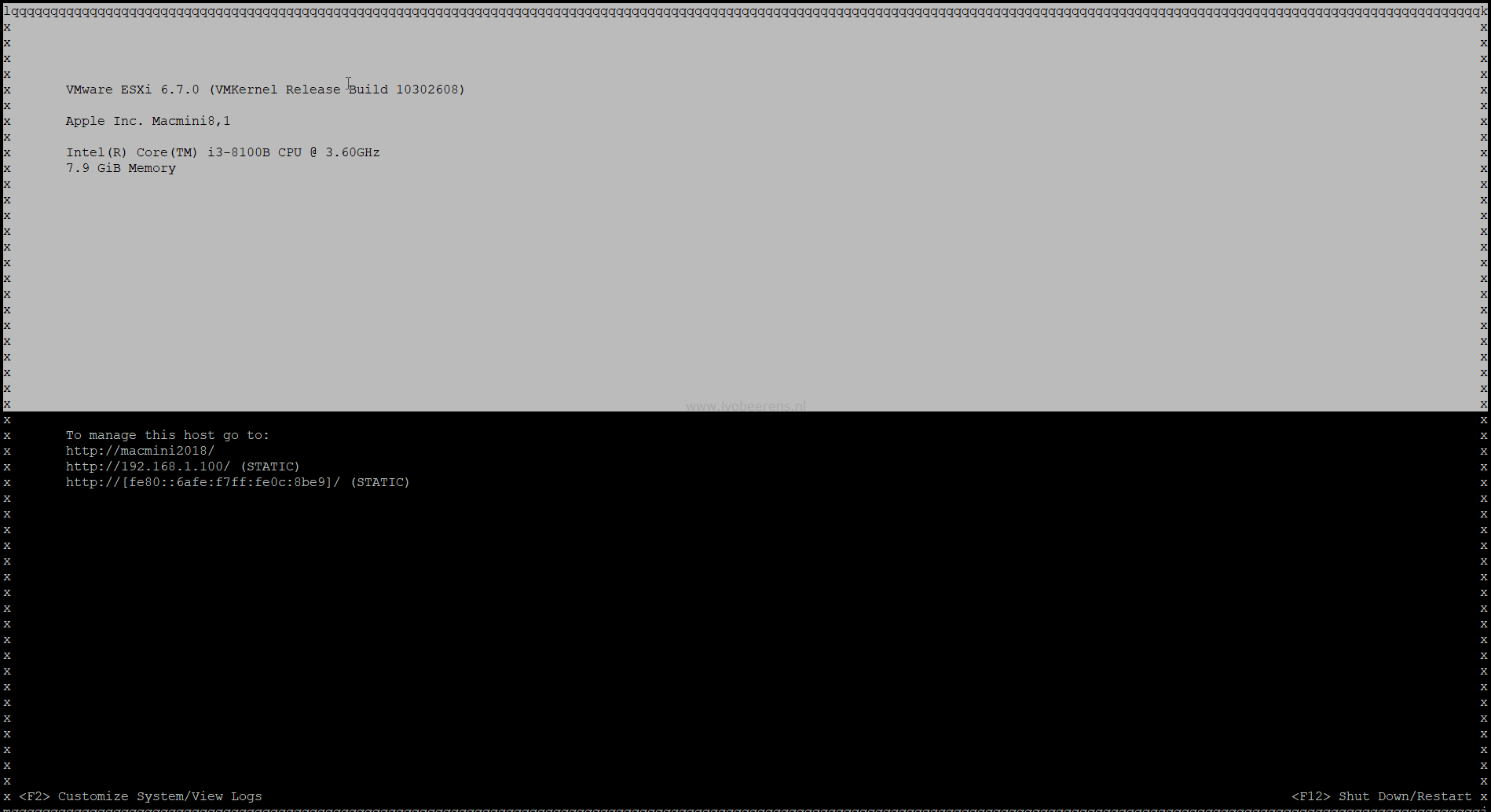

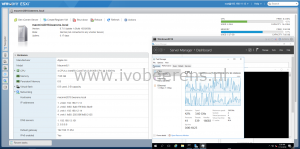

Here is a quick overview of screenshots from ESXi 6.7 U1 on the Mac Mini 2018:
Some considerations
- VMware ESXi 6.7 U1 is tested on the Mac Mini 2018 model with a USB stick to boot ESXi. The new Apple Mini 2018 model includes a T2 security chip that use secure boot. Disable secure boot to run VMware ESXi.
- Around 50% CPU and 67% memory load will use around 35 watt.
- The Mac Mini 2018 comes assembled from Apple.
- The CPUs that Apple uses in the Mac Mini 2018 are based on Intel Coffee Lake 8th generation. The CPU is embedded and not upgradeable!
- The new Mac mini allows for memory upgrades up to 64GB on two slots. The memory is it not soldered on the motherboard and is SO-DIMM based. 16 GB cost € 240,00, 32 GB cost € 720,00 and 64 GB cost € 1680,00 extra. To save money go for third-party memory from Kingston or Corsair for example. On iFixit a Mac Mini 2018 memory replacement guide can be found, link.
- The Apple storage in the Mac mini is PCIe-based and not upgradeable. So size the SSD for the future!
- The PCIe-based SSD is not recognized by VMware ESXi!

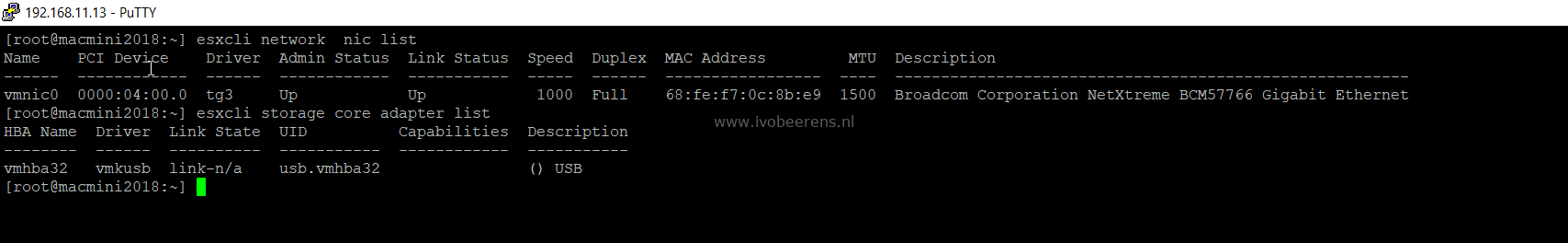

- The 1 Gb Ethernet NIC is recognized by ESXi as “Broadcom Corporation NetXtreme BCM57766 Gigabit Ethernet” adapter.
- The 10 GbE NIC is not recognized by VMware ESXi. The NIC is an Aquantia AQC107 and there are no ESXi driver on the moment.
- The Thundebolt controllers are not recognized by ESXi.
- The USB ports are redirected to VMware ESXi.
- A Teardown of the Mac Mini 2018 model can be found here, link.
Pros & Cons
| Pros | Cons | |
| Management | No remote management included | |
| Form factor | Great looks and form factor | |
| Noise level | Very low | |
| Power consumption | Low. Between ~11w and ~40w with the i3 4-core CPU, 8 GB RAM and 128 GB SSD config and ESXi installed with 1 VM. | |
| Memory | Up to 64 GB (2 memory banks) memory | The memory from Apple is expensive (32 GB will cost € 720,00 and 64 GB will cost € 1680,00 extra). Go for third-party memory memory to save costs. Adding third-party memory means you need to dissemble the Mac Mini! |
| Upgradeability | Only the memory can be upgraded. | The CPU and SSD are embedded, soldered and not upgradeable. |
| Ports | The USB controller and ports are recognized by ESXi. | The Thunderbolt controllers are not recognized by VMware ESXi. When the Thunderbolt controllers are regornized great Direct Access Storage (DAS) solutions can be build. |
| Extension | There no room for adding add-on cards and extra disks inside the Mac Mini 2018 box. | |
| Ethernet | 1 GbE Ethernet NIC is recognized by ESXi |
|
| VMware ESXi support | Is tested with ESXi 6.7 U1 when booting from USB key. The 1 GbE NIC is recognized by ESXi. The VM runs from a NAS device over the 1 GbE adapter. | Not on the HCL |
| Storage | Use an USB stick to boot ESXi and use remote storage such as a NAS to boot VMs. | The PCIe-based SSD is not recognized by ESXi. |
| Pricing | For a new homelab host I’ll need at least 32/64 GB memory. When buying the memory from Apple the pricing gets extremely high on the Apple Mac Min 2018. |
Conclusion
The new Mac Mini 2018 hardware specifications are a great refreshment compared to the old Mac Mini 2012 model, but it comes with a very high price for the most homelabers. The PCIe-based SSD, 10 Gb Ethernet adapter and Thunderbolt controllers are not (yet) recognized by VMware ESXi. I think there are better homelab options available on the moment for less money.
Just a correction: there was a Mac Mini version after the Late 2012 model. It was released in October of 2014 and was a significant step backwards. One hard drive slot, memory soldered and not upgradeable, and at least initially the max CPU was a dual core. The 2012 had up to quad core available and was completely upgradeable.
I highly recommend the Mactracker app for macOS and iOS as it has all the specs on every model of anything Apple has made.
Thanks Mark for the correction. I changed the model number in the blog.
>>I think there are better home lab options available on the moment for less money.
You mean to run ESXi & be able to create macOS VM’s ?
“Press the power button on the back of the Mac Mini and keep the Option (⌥) key pressed for the Startup Manager.”
Is there any way to set it to always boot from the ESXi USB? Mac Startup Utility doesn’t show it as an option. What will happen if I completely reformat the internal SSD so there’s no Mac involved. Will this allow me to boot automatically from USB or will it simply fail to boot? Has anyone had success installing a bootloader onto the SSD to make it automatically boot from the USB?
Could you try using BootCamp to run “Microsoft Hyper-V Server”? With the addition of “Windows Admin Center” it would make a good ESXi alternative?
I’m also curious if it would support the SSD and the 10Gbe, as initial reports indicate that Windows 10 works on the MacMini 2018.
Great tutorial!
The NIC is soon going to be usable: http://francisaugusto.com/2019/ESXi-on-the-2018-Mac-Mini-networking/
Just installed ESXi on a 6-core MacMini (2018) and I can confirm it won’t see the internal Disk. Also not when you reformat it to HFS+, FAT or exFAT. It won’t be seen during the installation and also not when it up and running.
I lost some time on not thinking about the effect off Ivo’s remark “The Thunderbolt controllers are not recognized by ESXi”. That also means that video via the USB-C ports will only work during the boot process. As soon as you should come into the installation part the screen gets black and the system stall’s. So get a HDMI display as that will work just fine!
I setup a mac based vmware esxi 6.7 server, I installed 10 manjero vms. all is working perfect. please advise me a method to remotely use these VMs. because I use “No machine(NX)” but secreen is blank after a few minutes. is there a better method? everyone is writing how to install esxi but no one is writing about methods to remotely connect for users. or best method tried out preferably. 🙂
I know this is an old thread but maybe this new info helps someone:
The 2018 Mac mini can now run VMware ESXi 8.01 internally flawlessly, thanks to native 1Gbe / 10Gbe Ethernet + Thunderbolt 3 support from VMware since ESXi version 7.03, as well as a community fling NVMe driver for the built-in T2 chip protected storage!
More info and driver links here: https://www.williamlam.com/2021/02/apple-nvme-driver-for-esxi-using-new-community-nvme-driver-for-esxi-fling.html
All that is missing is exposing the environment sensors for temperature and fans to ESXi….
Enjoy!
