VMware Workstation Device/Credential Guard are not compatible

Fix VMware Workstation and Windows Credential Guard compatibility issues on Windows 10.

Published

When using VMware Workstation 15 Pro with on Windows 10 with the Hyper-V role enabled I’ve got the following error when trying to install or start Windows 10 in VMware Workstation:

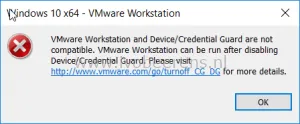

VMware Workstation and Device/Credential Guard are not compatible. VMware Workstation can be run after disabling Device/Credential Guard. Please visit http://www.VMware.com/go/turnoff\_CG\_DG for more details.

In 2013 I did a post about using VMware Workstation and Hyper-V together on Windows 8, link. The bottom line that the Hyper-V role conflicts with VMware Workstation. It looks like this is still the case. The same solution can be used to disable the Hyper-V role in Windows 10.

To disable Hyper-V from starting the following command can be used:

bcdedit /set hypervisorlaunchtype off

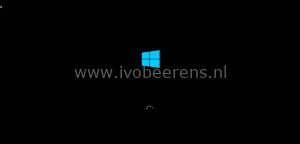

A reboot of Windows 10 is necessary. After the reboot I was able to boot the Windows 10 VM.

To enable the Hyper-V role again use the following command:

bcdedit /set hypervisorlaunchtype auto

A reboot of of the Windows 10 is necessary.

VMware/Microsoft has a KB article how to disable Windows Defender Credential Guard, link and link. I did not try this because the solution in this worked for me.
